Produkt information
Castle Creations kvalitetskontroller specielt designet til heli-brug, men kan også bruges til elektriske fly. Controlleren er klar til at bruge lige ud af pakken, men giver dig en række ekstra muligheder for yderligere programmering. Talon 35 ESC har en BEC designet til dagens servoer, der pumper hele 8 ampere peak og 3 ampere kontinuerligt, hvilket burde gøre selv de mest magt hungrige servoer glade.
PS! Produktteksten er maskineoversat fra norsk.
Specifikationer | |
| Celler | 2S-4S LiPo |
| Vægt | 7,2 G Drift |
| Størrelse (Lx Bx H) | 27,9X 14,7x 8,1 mm |
| Power Træk | 15A |
| BEC | 3A |
Product details in english

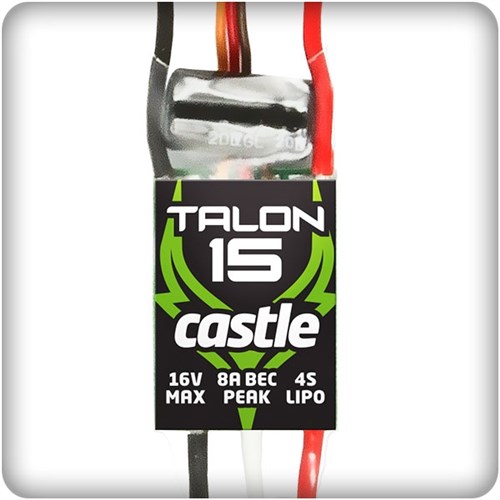

Øvrig info på engelsk fra produsent:We packed as much brute power and intelligence into this tiny layout as we possibly could and came up with a 15 amp* controller with ability to sustain an 8 amp BEC! Talon 15 measures just 1.1inch long and is under 0.6inch wide! At nearly the size of a quarter, this ESC supports an outlandish 8 amp** peak BEC with input voltage of 5.5 VDC. Applications range from foamies to micro and sub-micro helis running up to 4S and pulling 15 amps. As with any Castle ESC, the Talon 15 offers Castles industry-leading functions, not to mention easy programming using the Castle Link USB adapter (coupon for free Castle Link included), or the Castle Field Link Portable Programmer (sold separately).
- Item number 010-0122-00
- Input voltage MIN: 2S LiPo
- MAX: 4S LiPo
- Max continuous amperage at full throttle 15 amps*
- BEC voltage (voltage regulator for powering radio and servos) 5.5 volts
- BEC output 8 amp peak** 3 amp continuous (always check servo draw prior to first flight)
- Dimensions
- Width: 14.7mm
- Length: 27.9mm
- Depth: 8.1mm
- Weight (with wires) 7.2g
- Weight (without wires) 3.4g
Items needed for operation or installation :Battery connector and motor connectors sold separately
Programmability Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software.
*RC HOBBY APPLICATION RATING: 15 amps for the duration of a single 1,500 mAh battery pack with the ESC in contact with a 5 mph airflow of 25C (77F) or cooler air and minimal BEC load. Controller temperature must never exceed 100C (212F). Exceeding current or temperature ratings may damage components and may shorten the life of the ESC. Always verify system current draw at full-throttle. Decrease load or increase airflow to decrease the ESC?s operating temperature.
**Peak indicates amperage sustainable for 0.5 seconds - long enough for most servos? current draw transients. Always confirm servo current draw before the first flight of the model.
