Produkt information
Futaba 3PV T-FHSS er en overkommelig radio, men har mange gode funktioner. Den har 10 modelhukommelser, den har firehjulet styremix og bremse, fejlsikker og dobbelt hastighedsstyring for at nævne nogle få. Pakken leveres med 3-kanals FHSS-modtager R203GF.
PS! Produktet kan afvige fra videoen.
Læs mereKlippet er tilføjet som relevant information til produktet, men er ikke nødvendigvis identisk. Indholdet i en produktvideo, testvideo eller anmeldelse kan afvige fra det produkt, der sælges. Dette kan gælde farver, specifikationer, versionsforskelle, regionale forskelle mv. Det er produktets navn, beskrivelse og billeder, du skal forholde dig til ved køb af varen.
OK
PS! Produktteksten er maskineoversat fra norsk.
Radioen understøtter modtagere med FHSS, S-FHSS og T-FHSS modulation.
Pakkeindhold:
Rotteradio 3PV
3-Kanals 2,4 GHz modtager (R203GF)
Engelsk manual
Sendebatteri (4 AA), og enhver oplader skal købes udenfor.
Product details in english

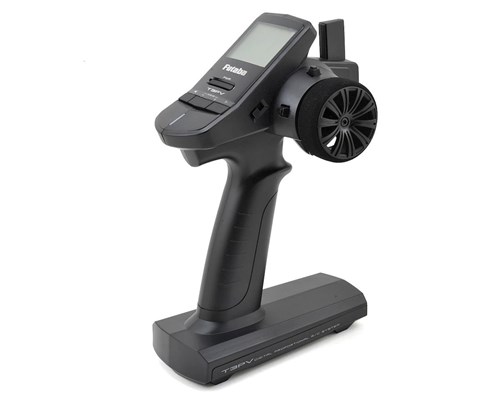

Hold the 3PV in your hand, and instantly feel how lightweight it is. Access the programming menu on the easy-to-read screen, and see how sophisticated it is. Experience the 3PVs super-fast response rate, and realize that youre in command of the system that can make a real difference on race day. You also get FHSS, S-FHSS and T-FHSS protocols, making it one of R/Cs most versatile surface system. The 3PV is available with a high-voltage R203GF receiver thats an ideal match for brushless ESCs and digital servos.
T3PV Features:
System: FHSS, S-FHSS & T-FHSS 2.4GHZ (T-FHSS / Telemetry only available with the optional R304SB receiver)
3+1 Channels (the 4:th channel can only be used when 4WS mixing (crawlers) or Brake mixing and with a 4-channel receiver)
Channel 3 can be used on SW1 (two endpoints) or at DT3 where the D/R normally is at (stepped function)
10 Model Memory
4-Character Model Name
Sub-Trim (CH1-4)
Channel-4 Trim (only visible if 4WS or Brake Mixing is activated)
Steering Dual Rates (D/R)
Steering End Point Adjustement (EPA-CH1)
Throttle End Point Adjustement (EPA-CH2)
Channel-3 End Point Adjustement (EPA-CH3)
Channel-4 End Point Adjustement (EPA-CH4) - this is only displayed when 4WS or Brake Mixing is activated
4-Wheel-Steering / Brake Mixing (SMX) (booth mixers cant be used at the same time)
Sero Reverse (CH1-4)
Steering Exponential (EXP-CH1)
Throttle Exponential (EXP-CH2)
Throttle Fail-Safe (F/S)
ABS Brakes (3- cycle speeds available)
Model Data Copy
Auto Power-Off after 10 minutes
Low Battery Alarm:
4x AA alkaline batteries - set LBA @ 4.2V
5 cell (6V) NiMH - set LBA @ 5.0V
2S (6.6V) LiFe - set LBA @ 5.8V
Available T-FHSS Telemetry Functions when using the R304SB receiver (not included):
Receiver battery voltage (no sensor needed)
External voltage (if this sensor is used the receiver battery voltage is not visible on the TX LCD) - SBS-01V
No other telemetry sensors can be used
Suitable Receivers:
R203GF S-FHSS (included)
R304SB T-FHSS (optional) - Use only Futaba Digital & BLS servos
Optional TX Batteries:
4x AA alkaline batteries (battery holder included)
YT1800A (5 Cell NiMH)
HT5F1800B / FPEBA0142 (5 Cell NiMH)
FT2F1700B / FPEBA0140 (2S 6.6V LiFe)
FT2F2100B / FPEBA0135 (2S 6.6V LiFe)
T3PV-2.4G Transmitter:
FHSS/S-FHSS/T-FHSS* system
Wheel type
3+1 channels (the 4th channel is used for mixing functions only)
Transmitting frequency: 2.4GHz band
Power requirement: Size AA Dry cell battery x 4 (6V) (or 5-cell NiMH / 2-cell LiFe)
Current drain: 100mA or less
Transmission antenna: 1/2? di-pole (Built-in)
Receiver R203GF (included):
3 channels
S-FHSS/FHSS auto detection system
Power requirement: 4.8V ~7.4V battery (Dry cell battery cannot be used)
Size: 39 x 26 x 10 mm (excluding a projection part)
Weight: 8 g
