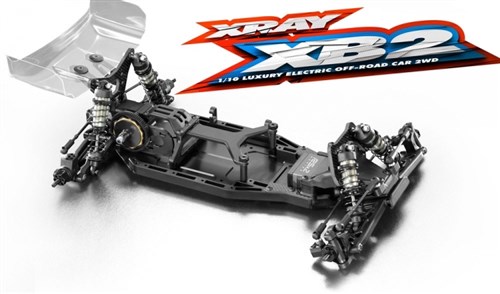

Konkurransebuggy i 1/10 skala med tohjulstrekk utviklet for teppe. Leveres som byggesett uten dekk og elektronikk. Ulakkert karosseri og felger medfølger.
Product details in english
All-new 2018:
Recent USA Champion platformSpecial-design 2.5 mm thick chassis has strategically-milled areas to ensure proper stiffness - either stiff or soft - in all areas.Shorter front composite chassis front brace allows mounting of the new graphite side guard braces for adjustable front chassis flexGraphite chassis side guard braces give increased stability and performanceNarrower suspension holders with new rear suspension geometry improves rear tractionNarrower gear box to mount the new narrow suspension holdersGear differential with new diff-outdrives now designed to use with new 2.5 mm pin. The new stronger diff outdrives are the result of a new hardening process that increases lifetime and reliability.Drive shafts with 2.5 mm drive pins for increased drivetrain efficiencyNew 4.5 mm off-set wheel hex hubs to compensate for the new narrow suspension holdersHigher-precision shock absorber lower shims for more precise shock shaft movement
DimensionsClass: 1/10 electric 2WD off-road carWidth: Adjustable 245-250 mmLength: 274 mm (394 with wing)Wheelbase: Adjustable 282-285 mmWeight: 835 gReady-to-run weight: 1520 g
ChassisChassis: CNC-machined Swiss 7075 T6 aluminum 2.5mm (Carpet Edition) or 2.0mm (Dirt Edition)Front upper deck: Composite Hard (Carpet Edition) or Medium (Dirt Edition)
SuspensionSuspension: Adjustable suspension via Integrated Suspension System I.S.S.Rear suspension: Lower arm with adjustable upper camber linkFront suspension: Lower arm with adjustable upper camber link and with adjustable caster 0°, 2.5° and 5°Rear upright: Composite 0° toe-in with dual arm mounting and 7 roll center positionsShocks: Membrane free shock absorbers with Delrin pistonsShock towers: Front & rear machined 4.0mm & 3.5 mm laminated carbon graphite (Carpet Edition) or composite (Dirt Edition) with multiple shock mounting
DrivetrainType: 2WDPrimary: Pinion / spurDrive shafts: HUDY Spring Steel CVD drive shaftsDifferential: Sealed gear differential, 6 gear, silicone-filledSlipper clutch: Adjustable 3-PadBearings: Rubber-sealed high-speed bearings
GearingPrimary ratio: 1:2.65Gear Box gear: 36T (Carpet Edition) or 25T (Dirt Edition)Differential pulley: 53TSpur gear: 81T (75T, 78T, 84T & 87T option)Motor pinion: Not included
GeometryCamber: Adjustable front + rearFront Caster: 26° static + caster in caster block = 26°, 28.5°, 31° total caster rangeToe-in: Adjustable front + rearDownstops: Adjustable front + rearFront kick-up: Adjustable 26°~31°Rear anti-squat: Adjustable 0°~4°Anti-roll bars: 1.0mm, 1.1 mm, 1.2mm rear (option only)Ackermann: AdjustableBump steer: AdjustableSteering: Centrally-positioned dual steering system
Body, Tires, Wheels & MiscBody: XRAY XB2 bodyTires: Not includedWheels: XRAY Aerodisk 12mm Wheel hex hub
Standard adjustment:
Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
Additionally included:
HUDY Graphite Grease, Silicone Oils, Authentication Certificate, Parts list & Exploded view, Decals
Items Not Included:
Radio system (transmitter and receiver), steering servo, motor, pinion gear, LiPo battery packs, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal tool for all nuts and turnbuckles and other tools
